Nom De Marque: | RONA |
Numéro De Modèle: | RNCFH 138 |
Nombre De Pièces: | 1 unité |
Prix: | negotiable |
Délai De Livraison: | 7-15 jours de travail |
Conditions De Paiement: | L / C, T / T |

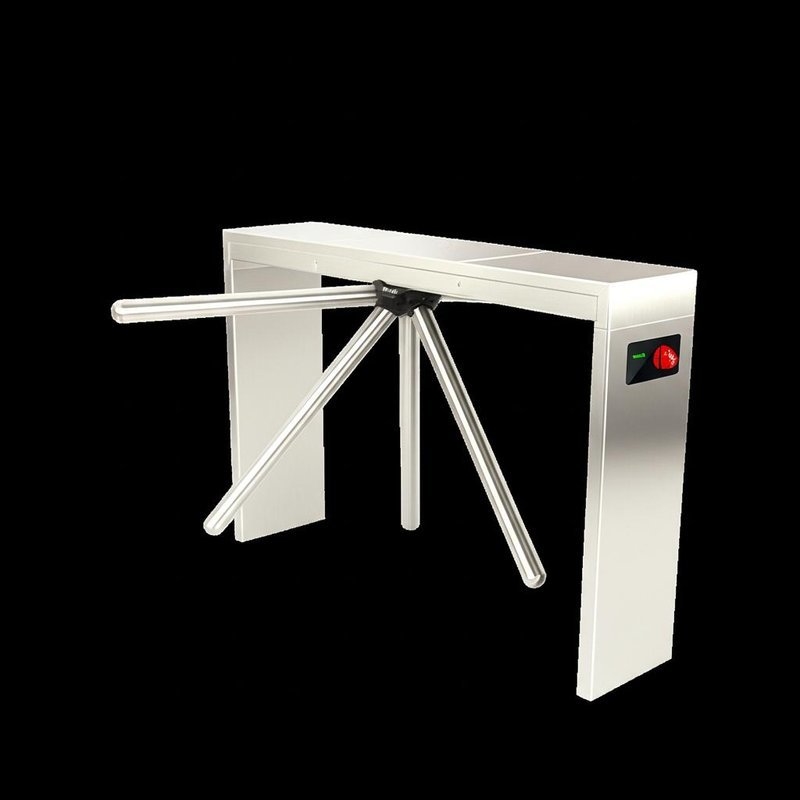

Ticket Tripod Gates are access control devices commonly used in public places such as tourist attractions, sports stadiums, museums, subway stations, and airports. By combining advanced electronic technology with mechanical equipment, they automate ticket validation and access control, making them an important tool for modern venue and scenic area management.
Functions
1.Ticket verification and express entry:
2.Customer flow monitoring and management
3.Security control
4.Flexible configuration and adaptability
5.Intelligent management and services
Parameters
Item | Full-auto | Semi-auto |
Size: | 1600mm*280mm*H990mm | |
Bar length : | 510(mm) | |
Bar Driving model : | Digital | |
Rolling direction : | Bi-direction,unidirectional(optional) | |
Lamp indication : | Passing way indication | Passing way indication |
Mechanism core : | Magnetic valve | |
Extensive function : | Counter ,LED digital display | |
Work condition : | Indoor/outdoor | |
Temperature: | -20℃~70℃ | |
Anti-panic : | Drop when power off, raise automatically when power on | Drop when power off, raise manually when power on |
Card-reading window : | Standard installation holder or customized | |
Opening time : | 0.2s | 0.2s |
Passing speed : | 30persons /min | 25 persons /min |
Working power: | 80W | 50W |
Working voltage: | AC220±10%V 50±10%HZ | AC220±10%V 50±10%HZ |
Input interface : | Relay, dry contact signal or 12V pulse signal, pulse width>100ms,drive current>10mA | |
Communication port : | RS485 ,connected with computer, remote control |
Packaging
